2 uplink 1.25G optical interfaces, 1 uplink E1 interface, 4 10/100M ETH user port, and 4 expand slots for voice/data cards

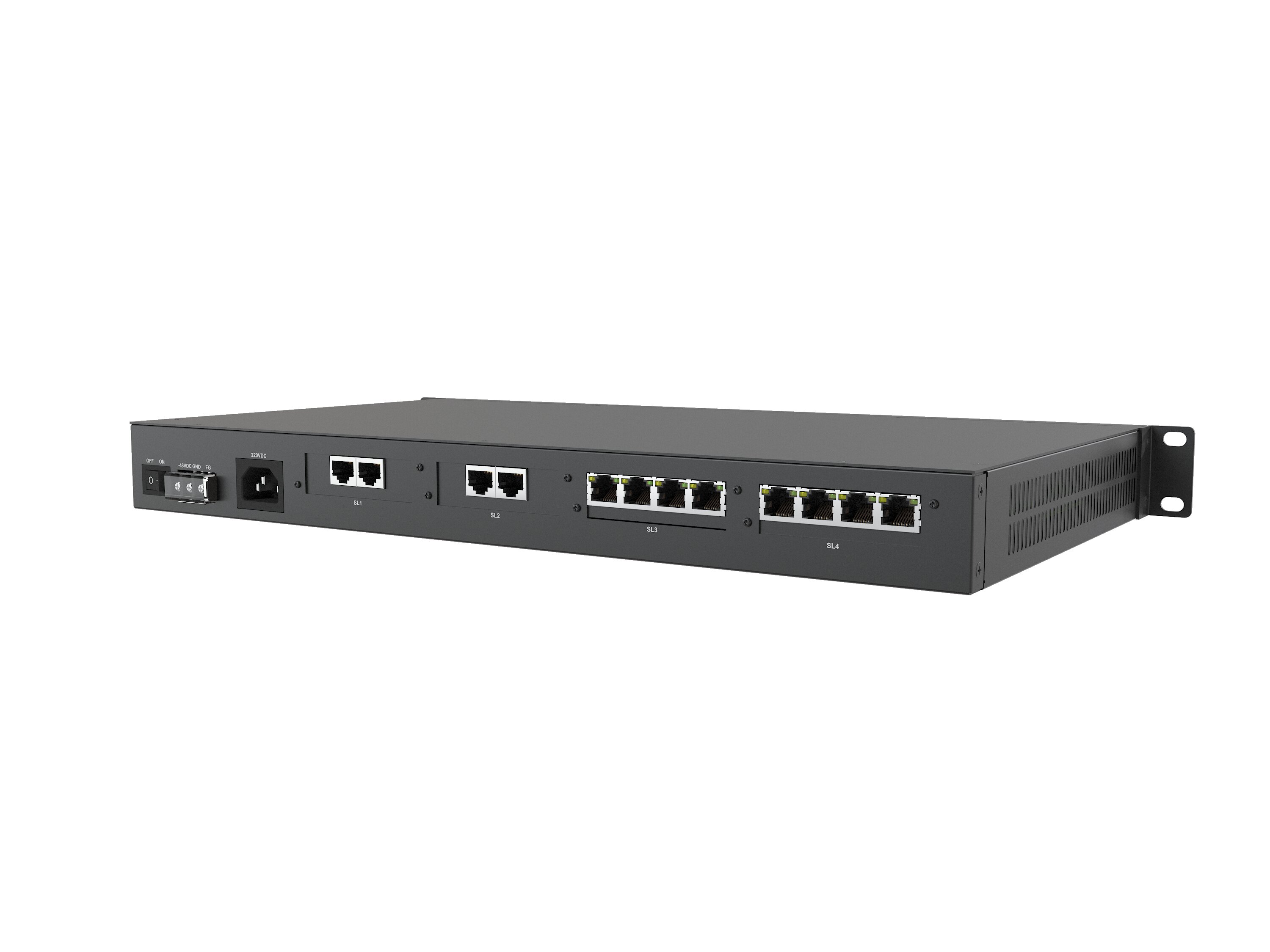

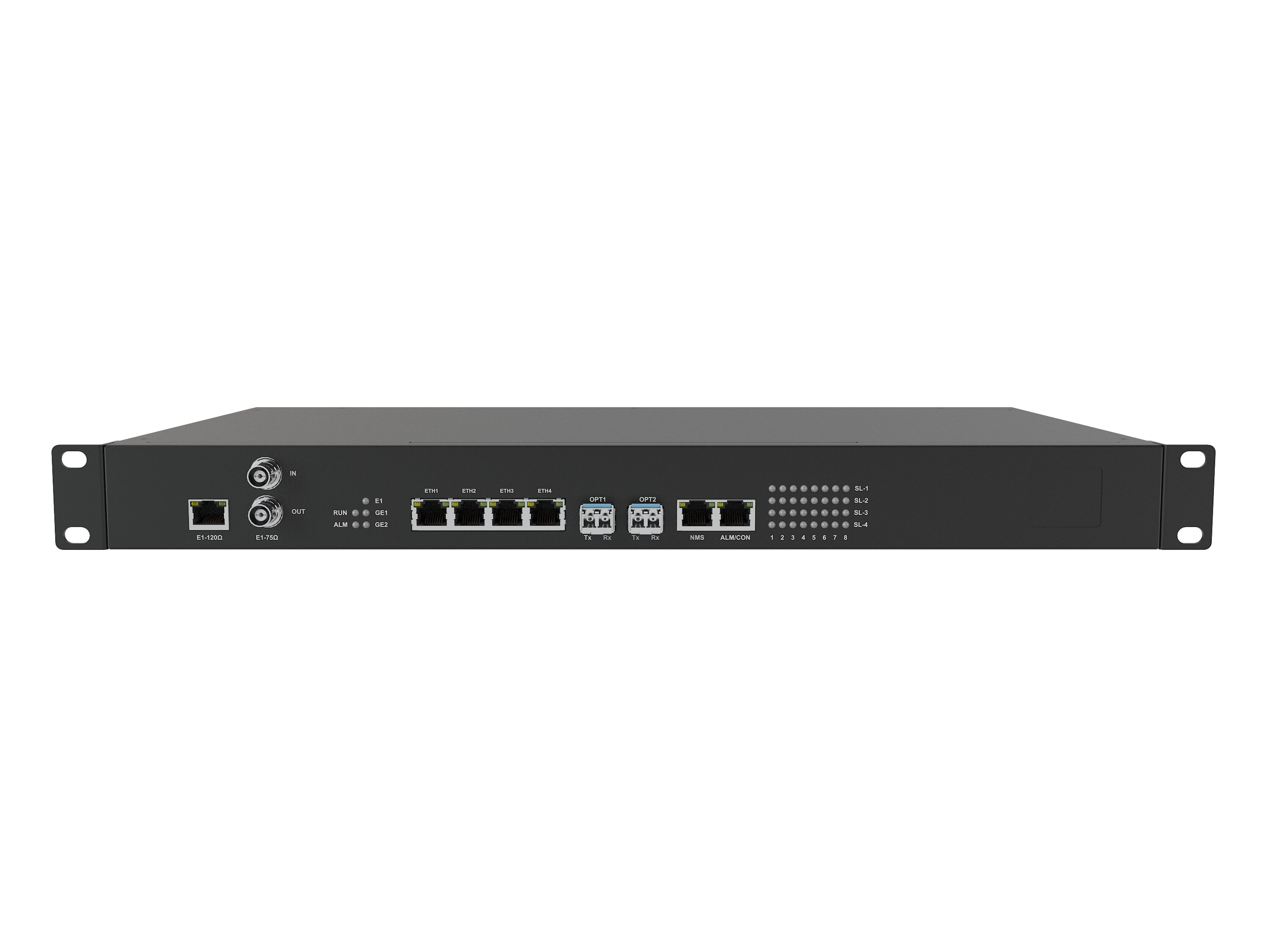

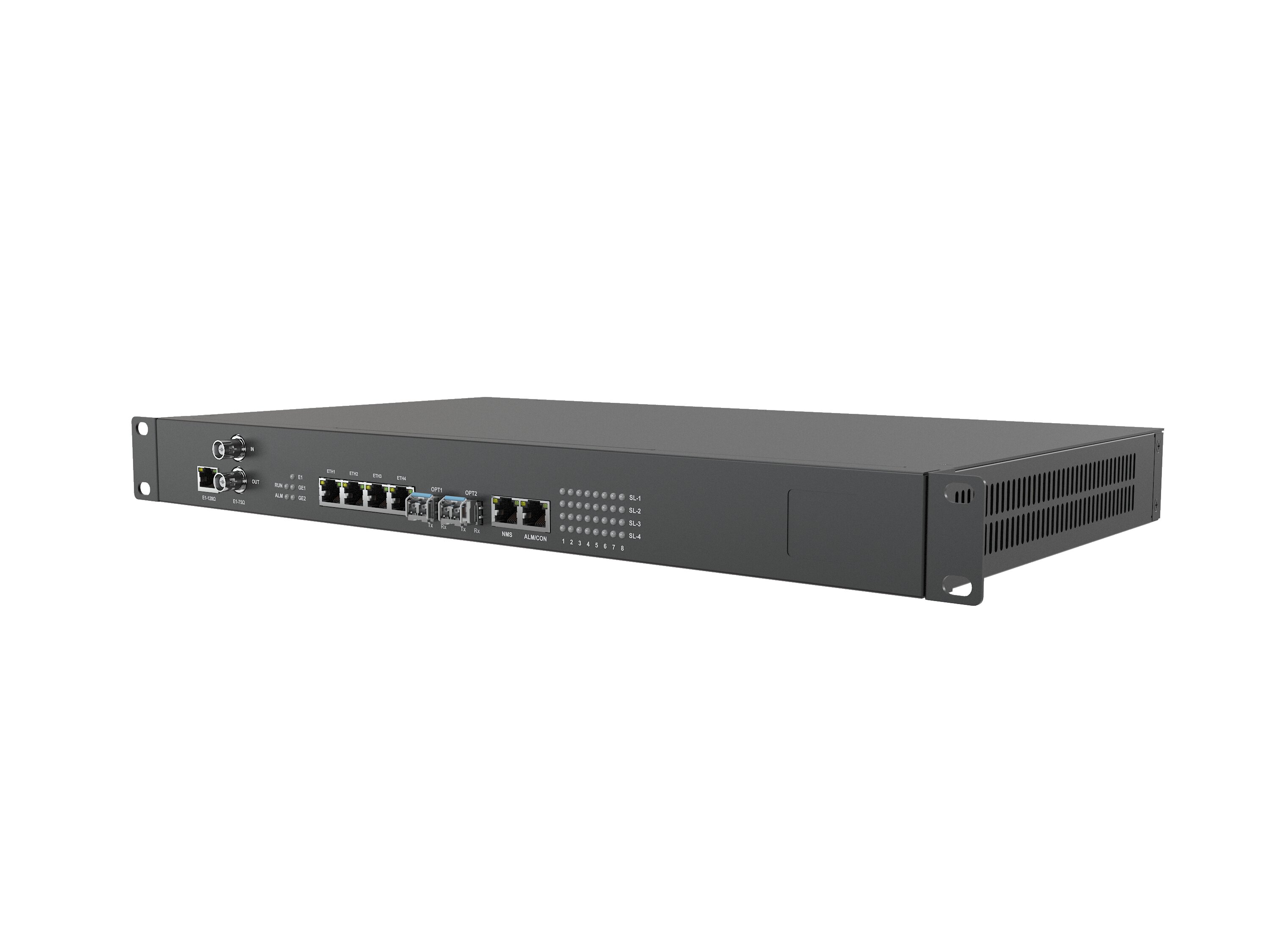

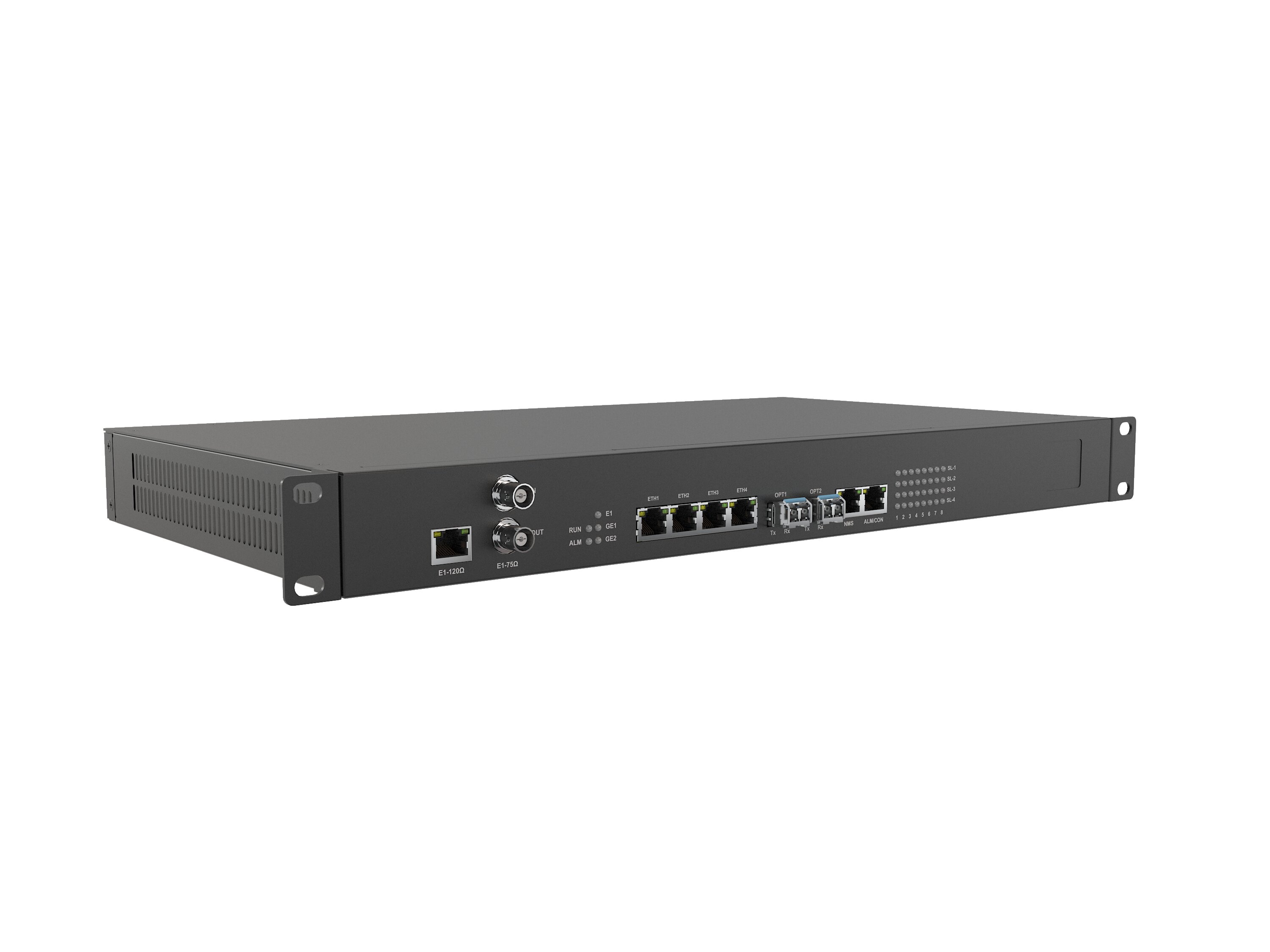

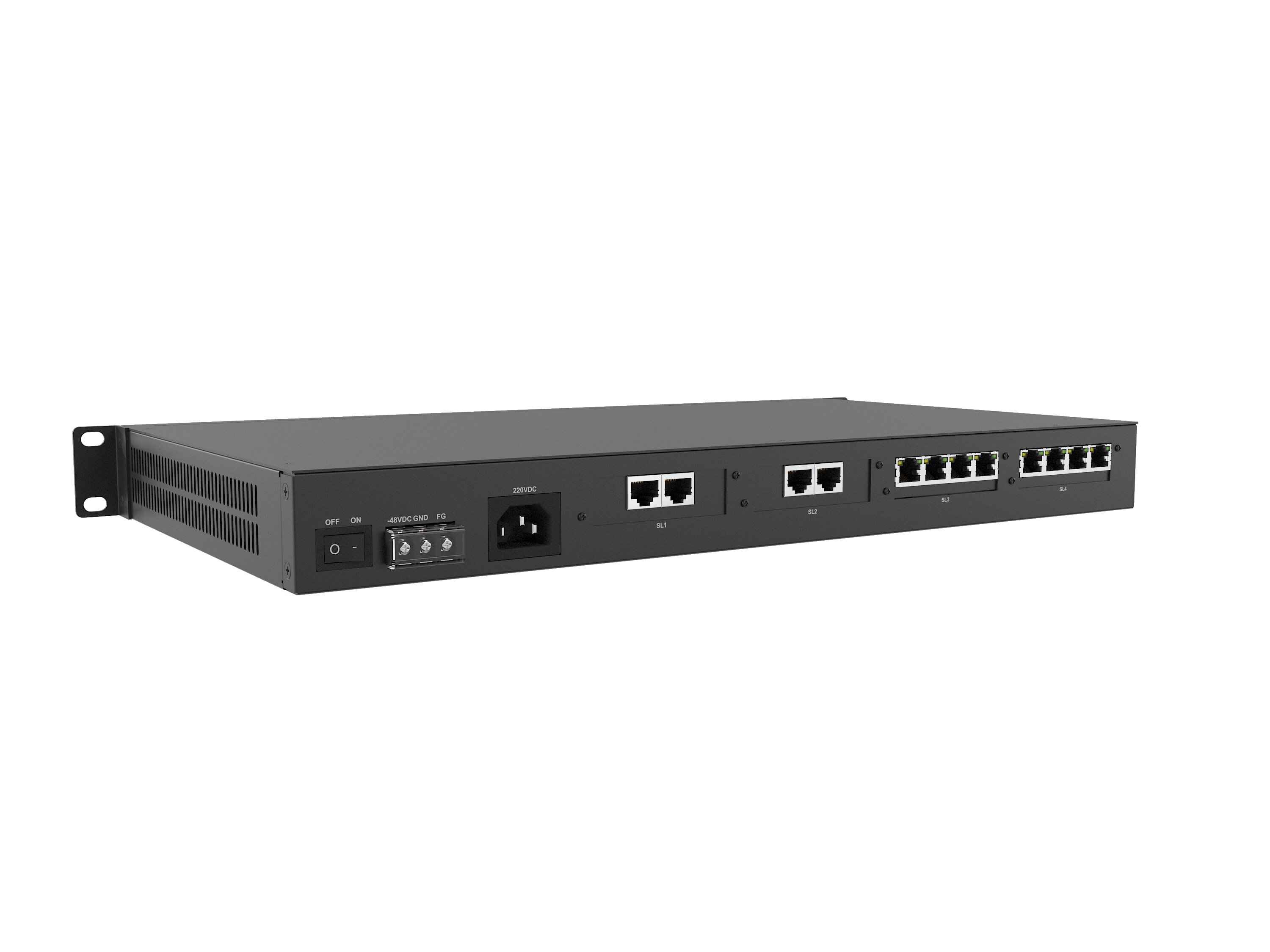

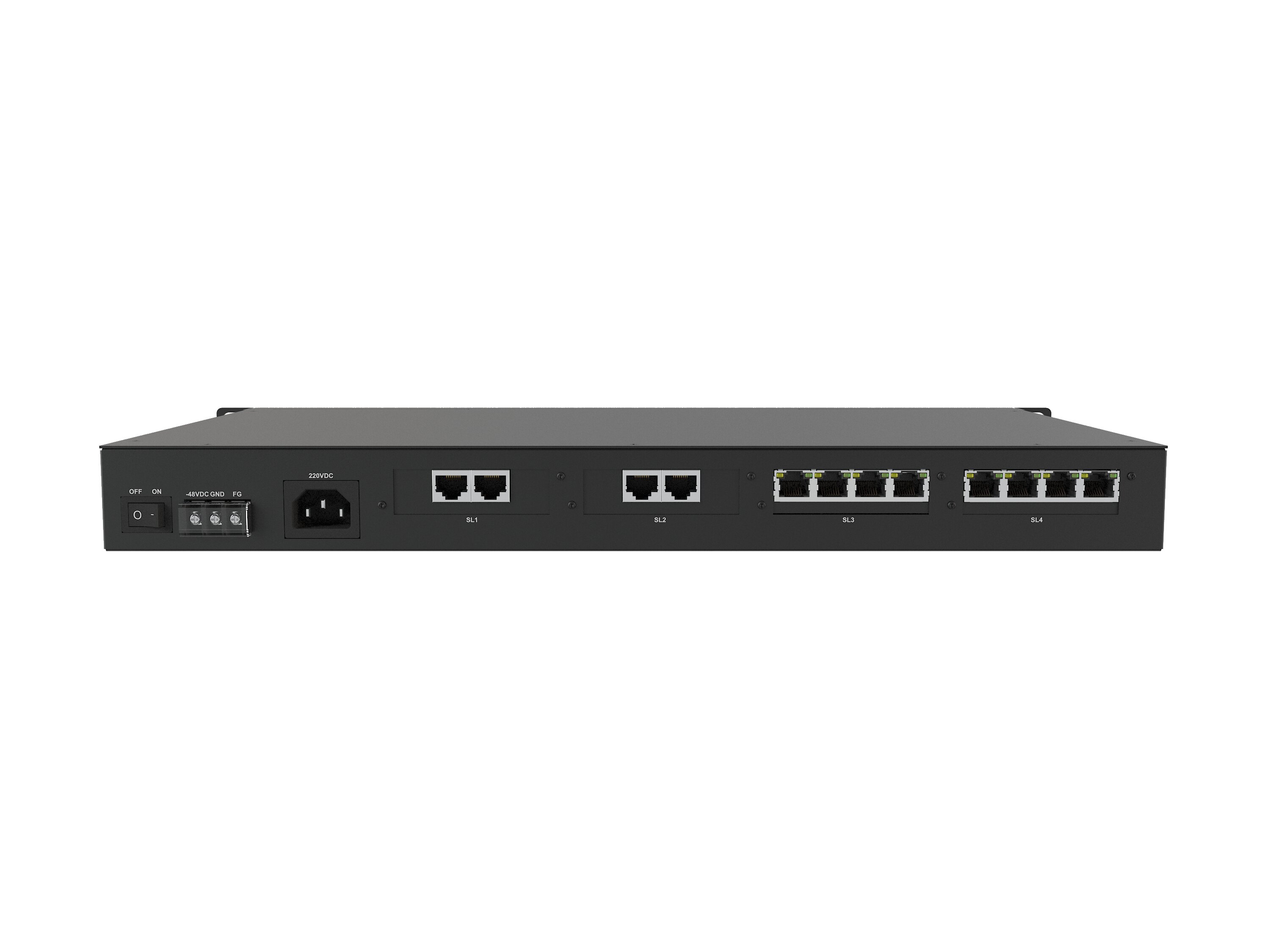

PT-50T 1308 versatile multiplexer equipment adopts 1U height standard 19 inch rack mountable case. In such small spacing, it provides 2 x uplink Ethernet interface , 4 x downlink electrical Ethernet interfaces,1 x E1 interfaces, as well as 32 data / voice channel service access interfaces. One dedicated ETH NMS interface and one alarm interface.
The PT-50T 1308 equipment supports very flexible configuration, according to the customer network requirement. It can realize point to point communications and point to multipoint communications application.
* 19″ rack mountable, 1U height compact size;
* Uplink interfaces include E1 or IP;
* Support 2*100M/1000M Ethernet interface, user can use optical or electrical module according the real network;
* Additional uplink E1 supports 75Ω and 120Ω, user definable;
*Support point to point or point to multipoint network, the max can up to 32 directions when voice/data transfer over IP;
*Support 4*10/100/1000M Ethernet interface, it supports VLAN;
* Four expansion slots for data or voice modules;(it can put FXO/FXS/HOT/MAG/RS232/G.703/4WEM….)
* Support E1 package QoS assurance;
*Support echo canceling features;
*NMS ports is ETH or RS232, it supports WEB, SNMP, GUI NMS;
* The equipment can upgrade the firmware and software remotely;
* The power can be AC220V or DC-48V or AC220V + DC-48V.
| E1 Interface |
Bit rate: 2048Kbps ±50ppm Code type: HDB3 code, G.703 standard Input impedance: 75Ω or 120Ω (user definable) Frame structure: G.704, G.706 Compression law: G.711 Level: ±2.37V ±10% |
| Ethernet Uplink Optical Interface |
Bit rate: 155M/1.25Gbps ±50ppm Output optical power: ≥-15dBm Receiving sensitivity: ≤-35dBm Optical wavelength: 1310nm/1550nm Optical interface connecter: SFP/LC |
| Ethernet Uplink Electrical Interface |
Bit rate: 100M/1000Mbps, full duplex Connector: SFP/GE-T (RJ45) |
| ETH Interface (10/100BASE/TX) |
Interface rate: 10/100Mbps, auto Standard: IEEE 802.3, IEEE 802.1Q (VLAN) Connector: RJ45 |
| Power Supply |
Input voltage: -48Vdc and/or 220Vac Voltage range: -36Vdc ∼ -72Vdc, 165Vac ∼ 265Vac Power consumption: <10W |
| Operation Environment |
Working temperature: -10°C ∼ 50°C Working humidity: ≤90% (non condensed) |

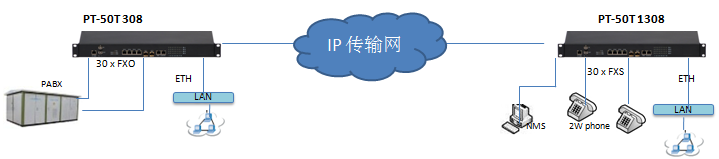

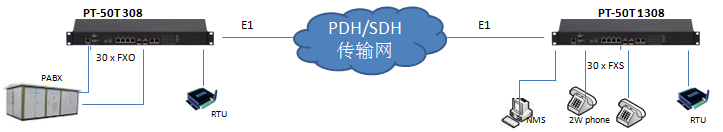

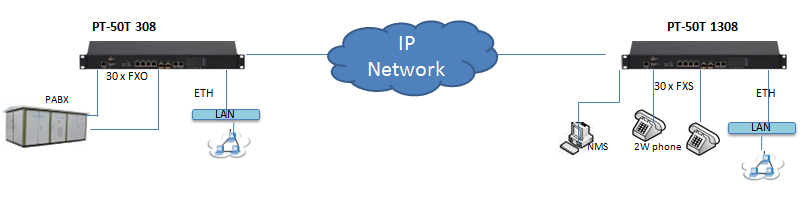

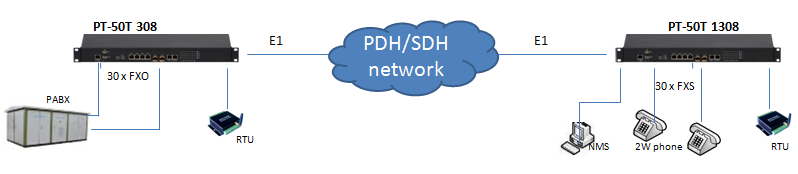

1. point to point

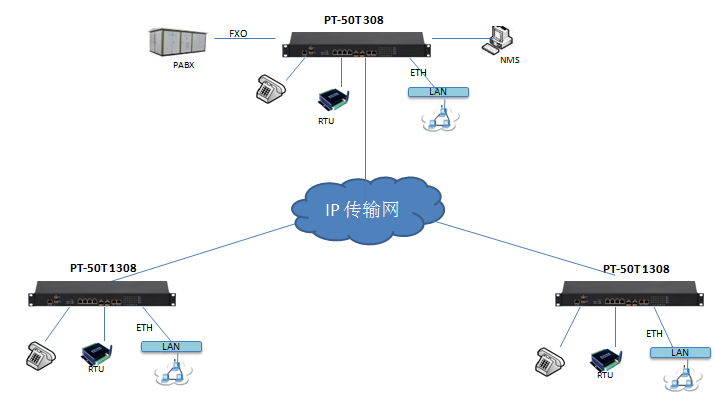

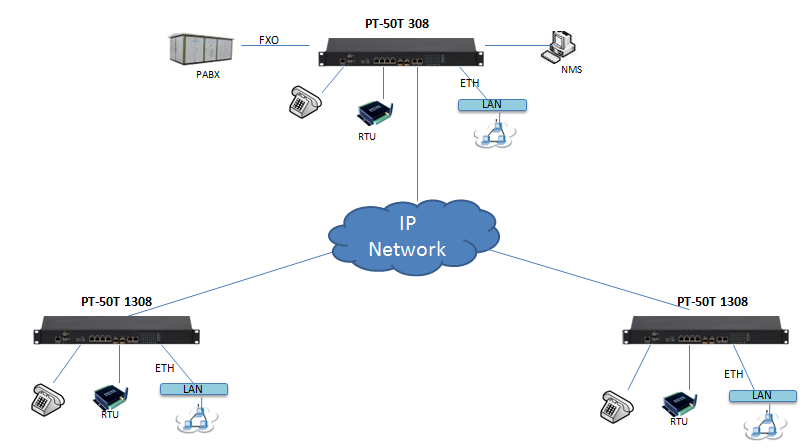

2. point to multipoint: the max can be up to 32 directions.
