business formation

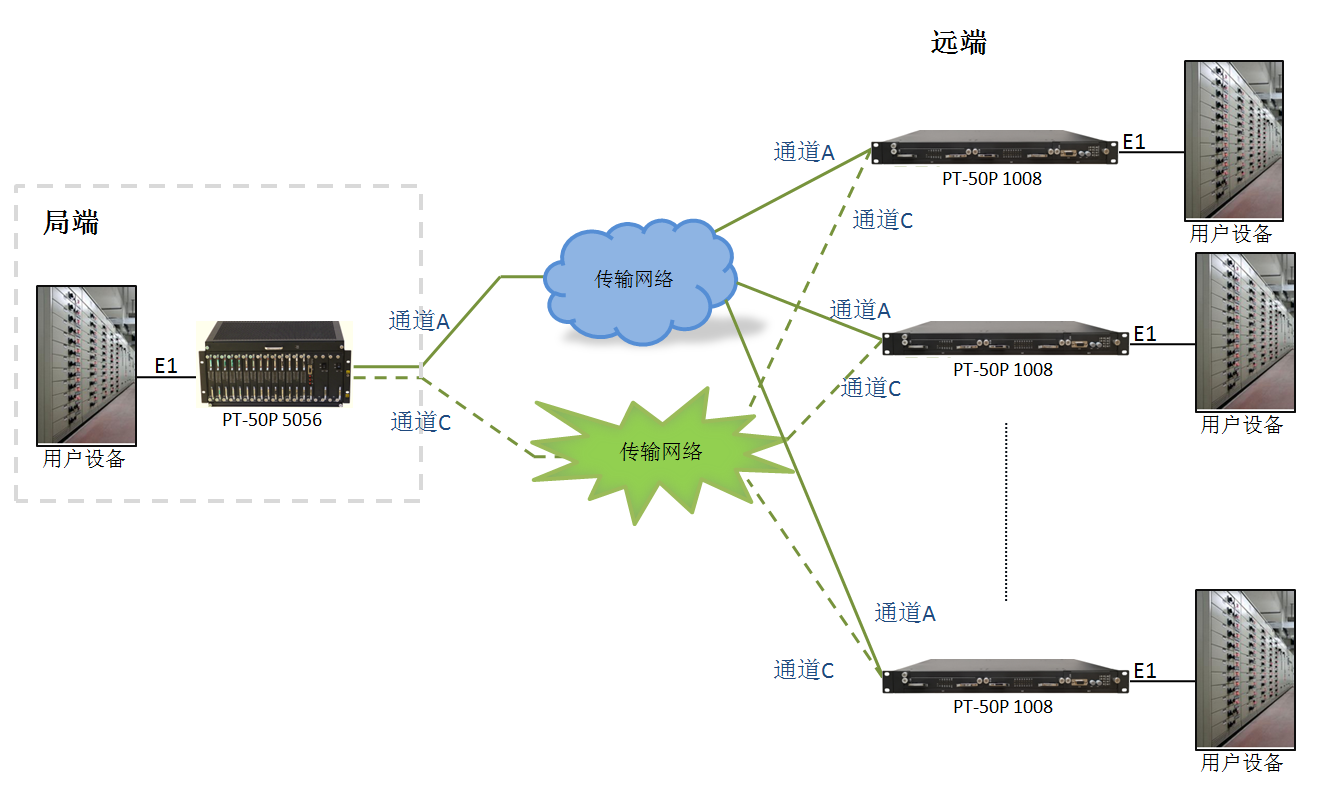

The E1 channel protection switching device adopts a "1+1" dual routing redundancy architecture, which sends concurrent signals through the primary and standby transmission channels. The receiving end analyzes the transmission quality of the two routes in real time (such as error rate, alarm status, etc.), automatically selects the optimal path to output the signal to the user equipment, and achieves lossless switching.
One device can support up to 56 channels E1 protections.

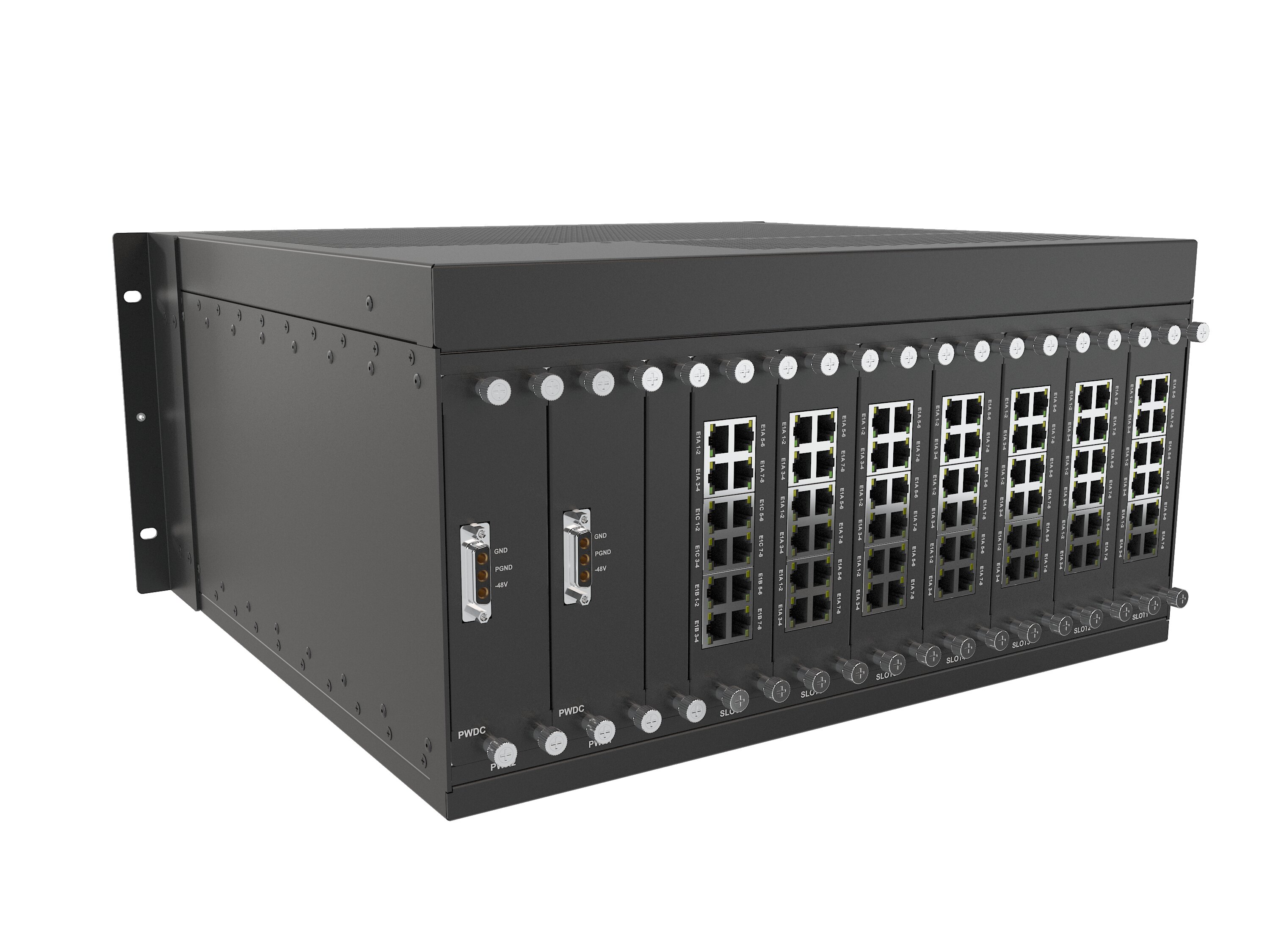

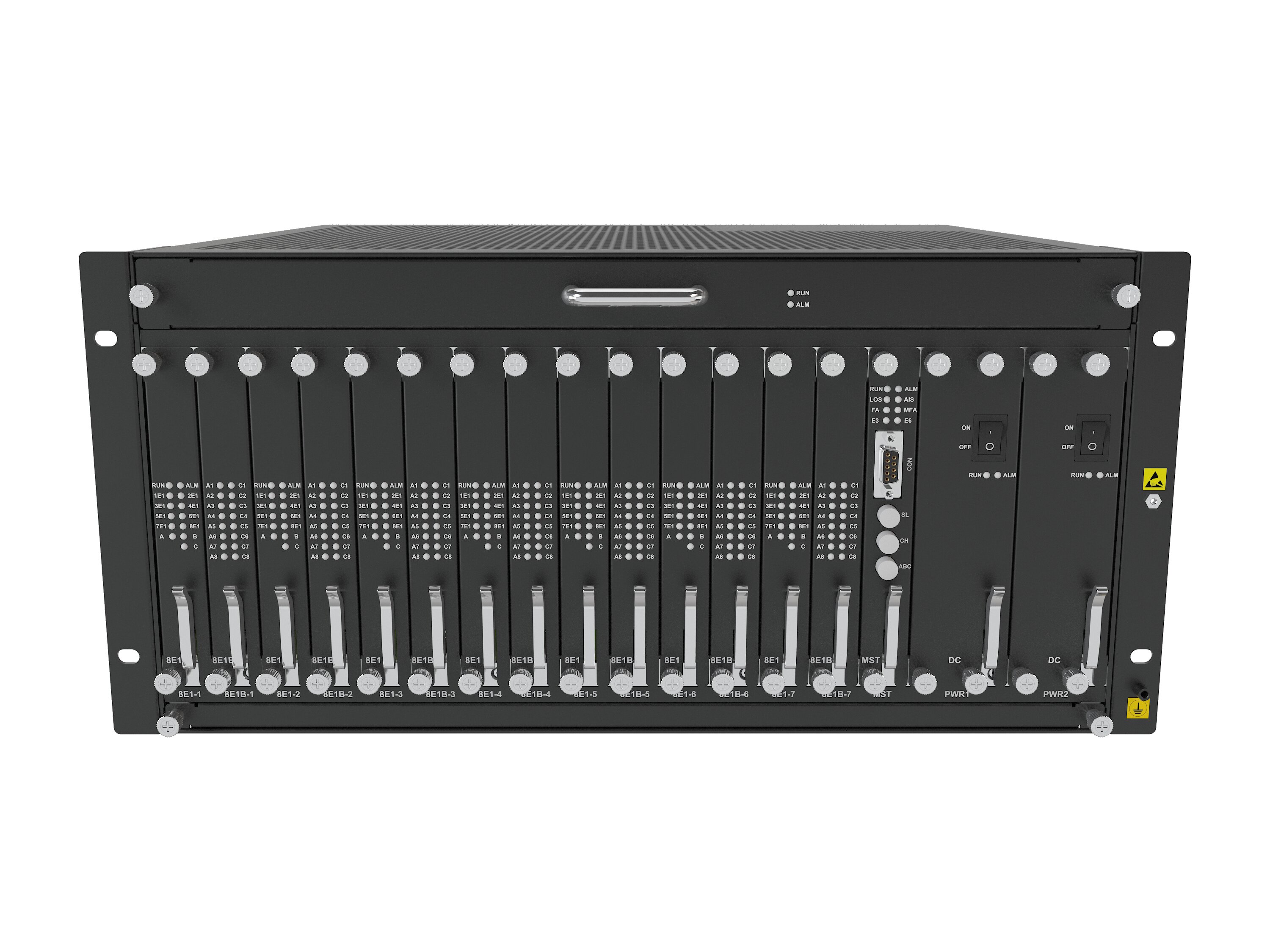

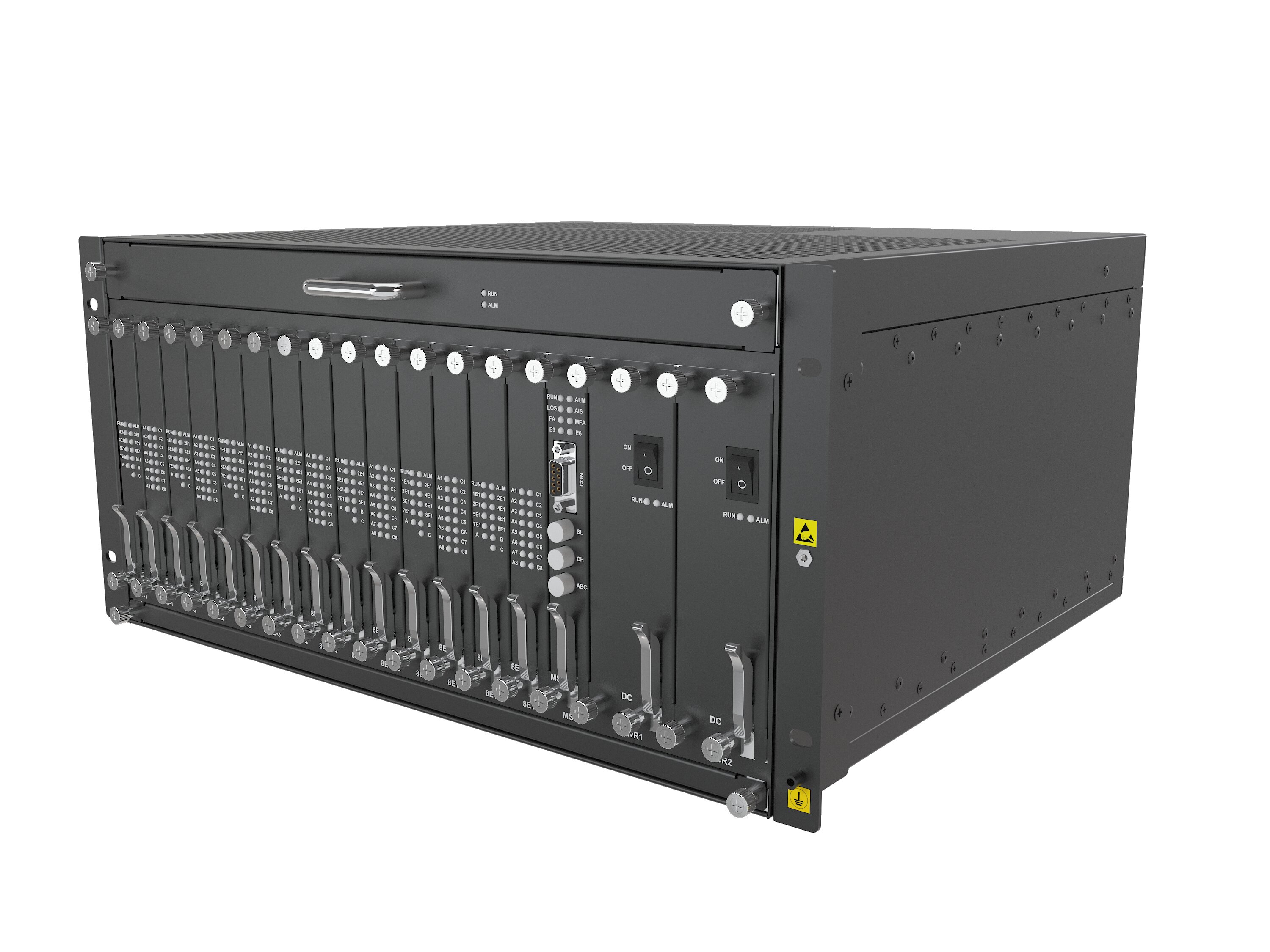

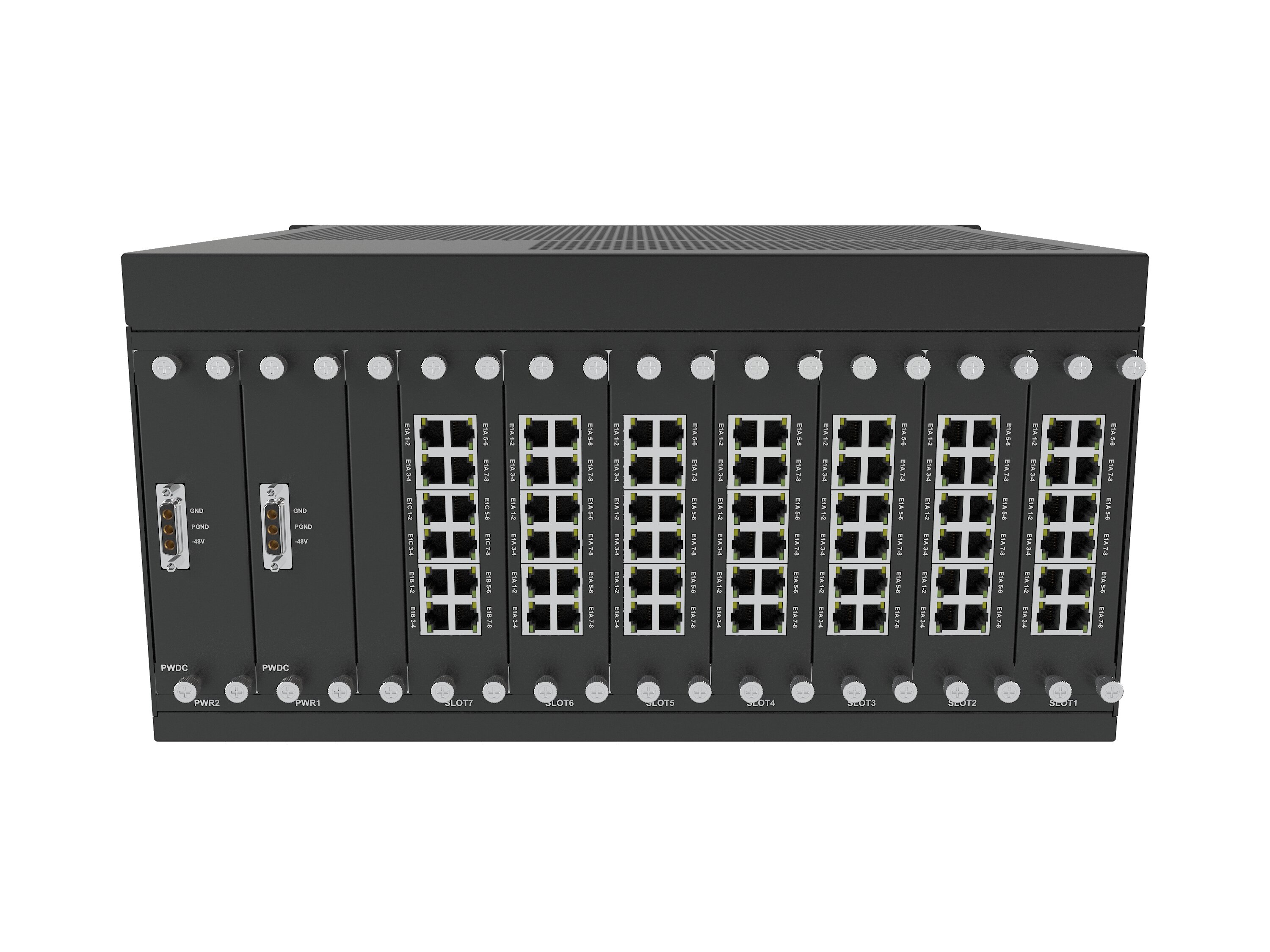

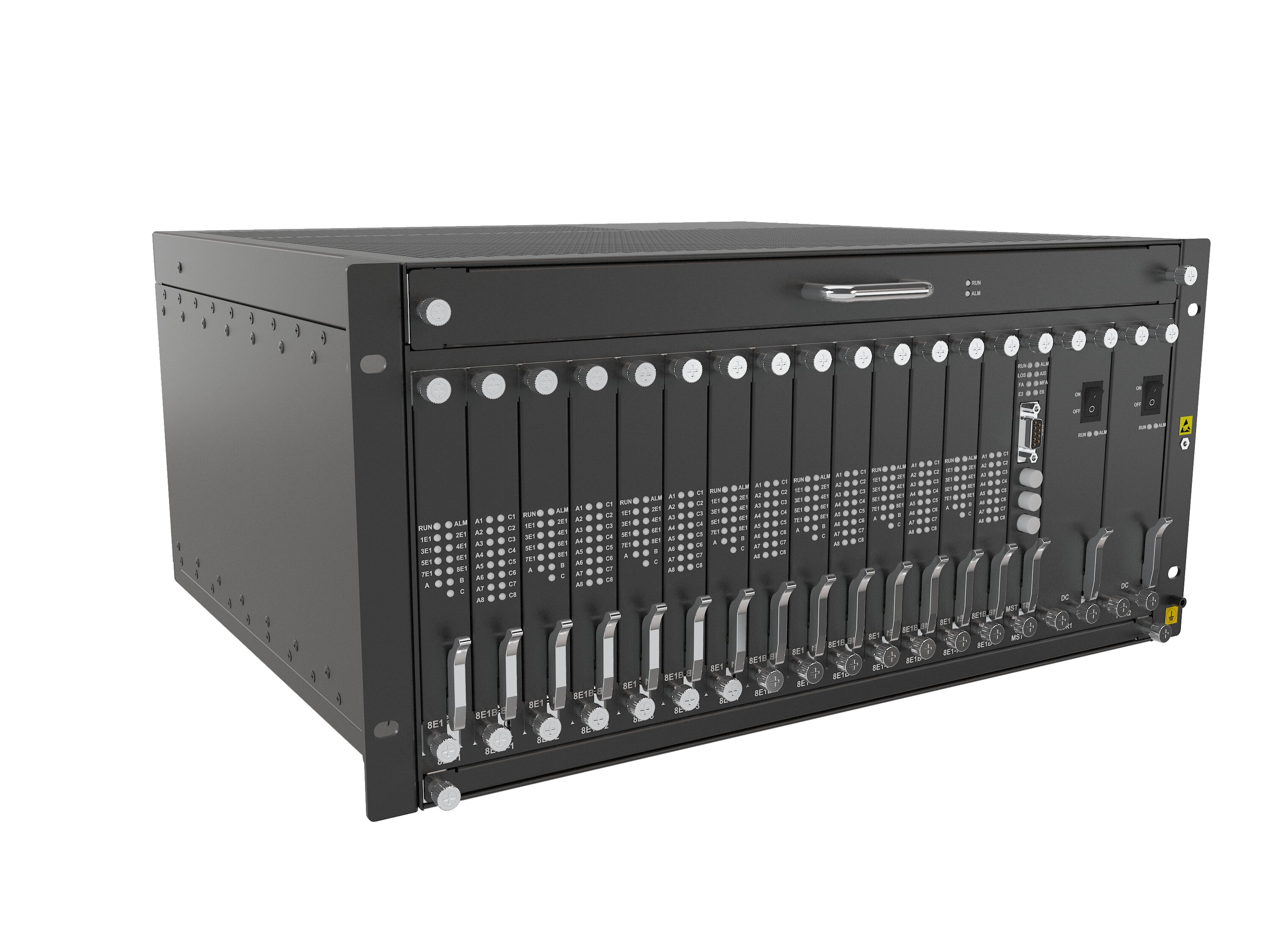

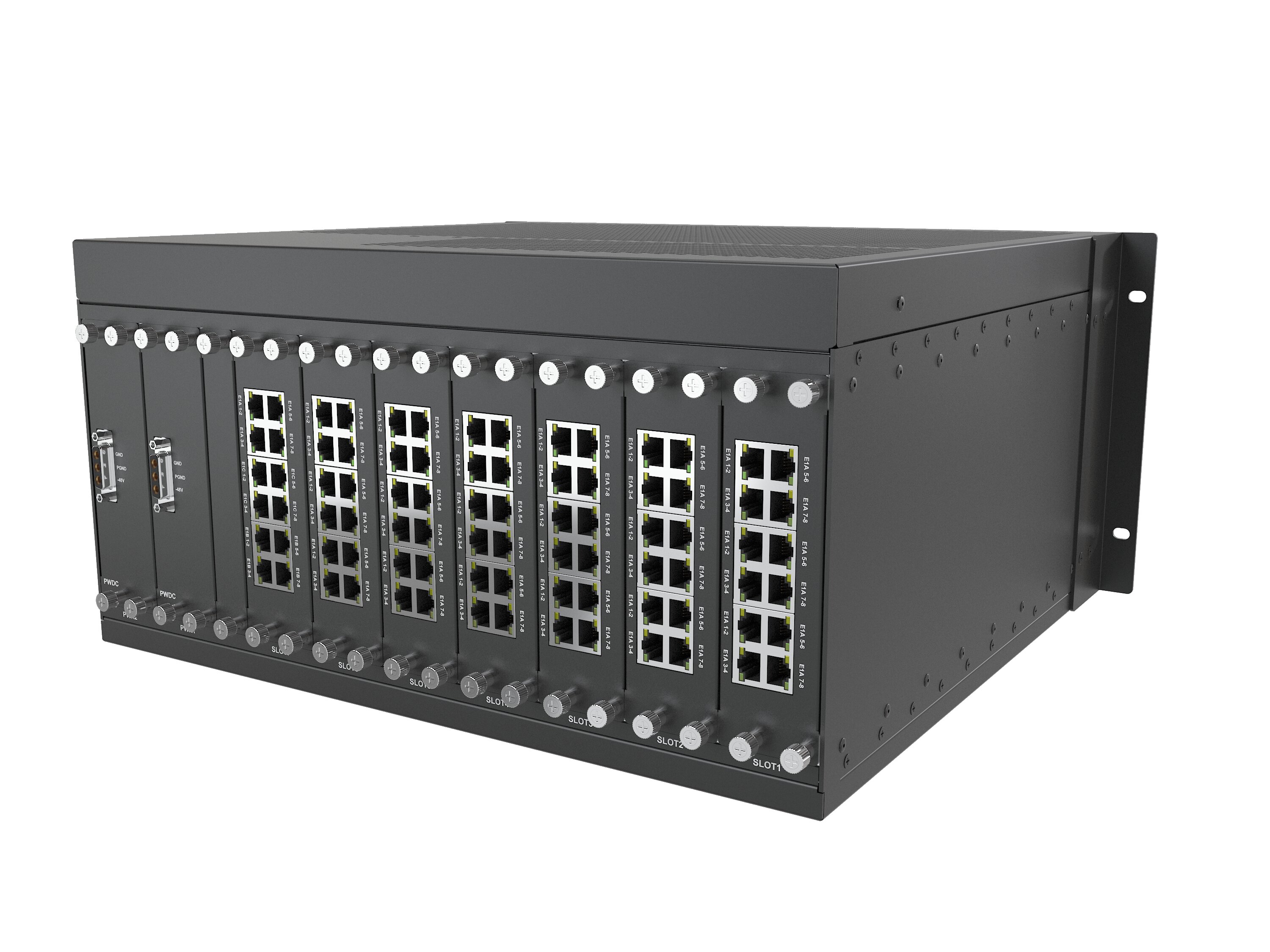

PT-50P 5056A is a high capacity i-APS (Intelligent Auto Protection Switch) provides the most valuable data services with extreme high availability for the bank, military or government department. It acquires a 5U height, standard 19" shelf, supports up to 56 E1 channels.

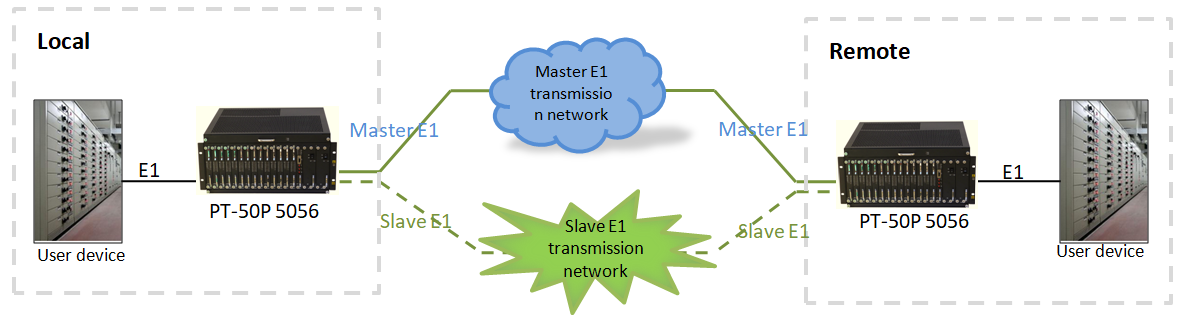

Two E1 channels are used to protect one E1 channel. The device automatically selects transmission channels based on the quality of the two protection channels to ensure that the protected E1 channels are always transmitted through high-quality channels. Even the device is powered off, the data will be by-passed automatically. For such both active transmission links technique, it guaranties the maximum availability of data transmission and non-destructive switch over.
*Supports 1+1 AC and/or DC power supply, all types of card are hot swappable;
*Automatic by-pass when power is off for guaranty data services continuity and availability;
*Both master and slave links are active all the time;
*Non-destructive and seamlessly switching for highly system availability;
*Receive paths are monitored and the best quality data will be sent to the user device;
*Powerful management system to simplify the device control and maintenance.
| E1Interface |
Bit rate:2.048Mbps ±50ppm Code type: HDB3 code, G.703 standard Input impedance: 75Ω or120Ω Frame structure: G.704, G.706 Jitter: G.742, G.823 |
| Management Port |
ETH Interface:10/100Mbps auto Connector: RJ45 |
| Operation Environment |
Working temperature: -10°C ~ 50°C Working humidity: 5%~ 95 % (non-condensed) |
| Power Supply |
Input voltage: -48Vdc and/or 220Vac DC Voltage range: -36Vdc ~ -76Vdc AC Voltage range: 176Vac ~264Vac Power consumption: <50W |
