SDH, PCM and IPPBX all in one，it can support main control card and power supply card 1+1 hot backup, there has 15 slots for service cards.

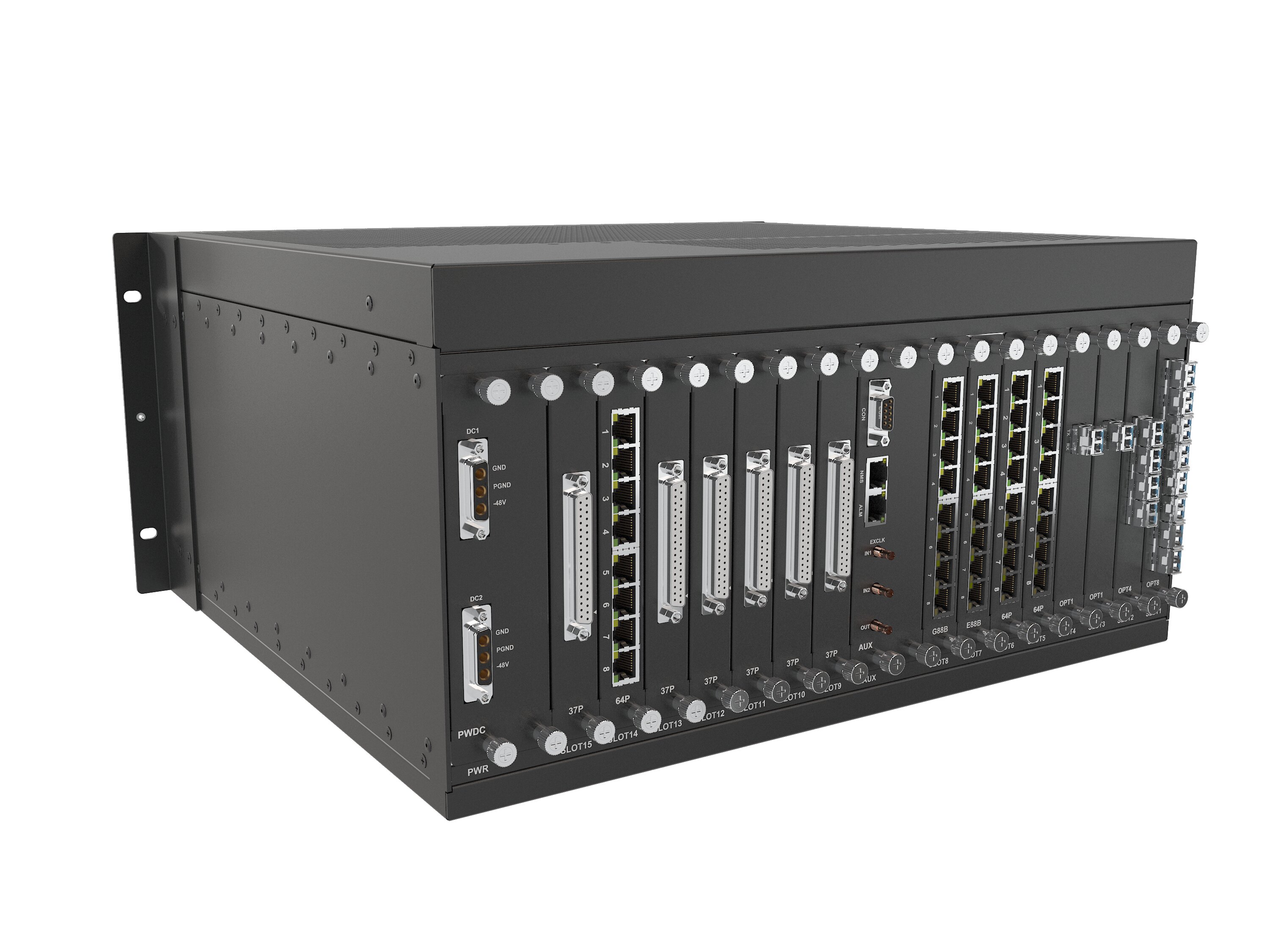

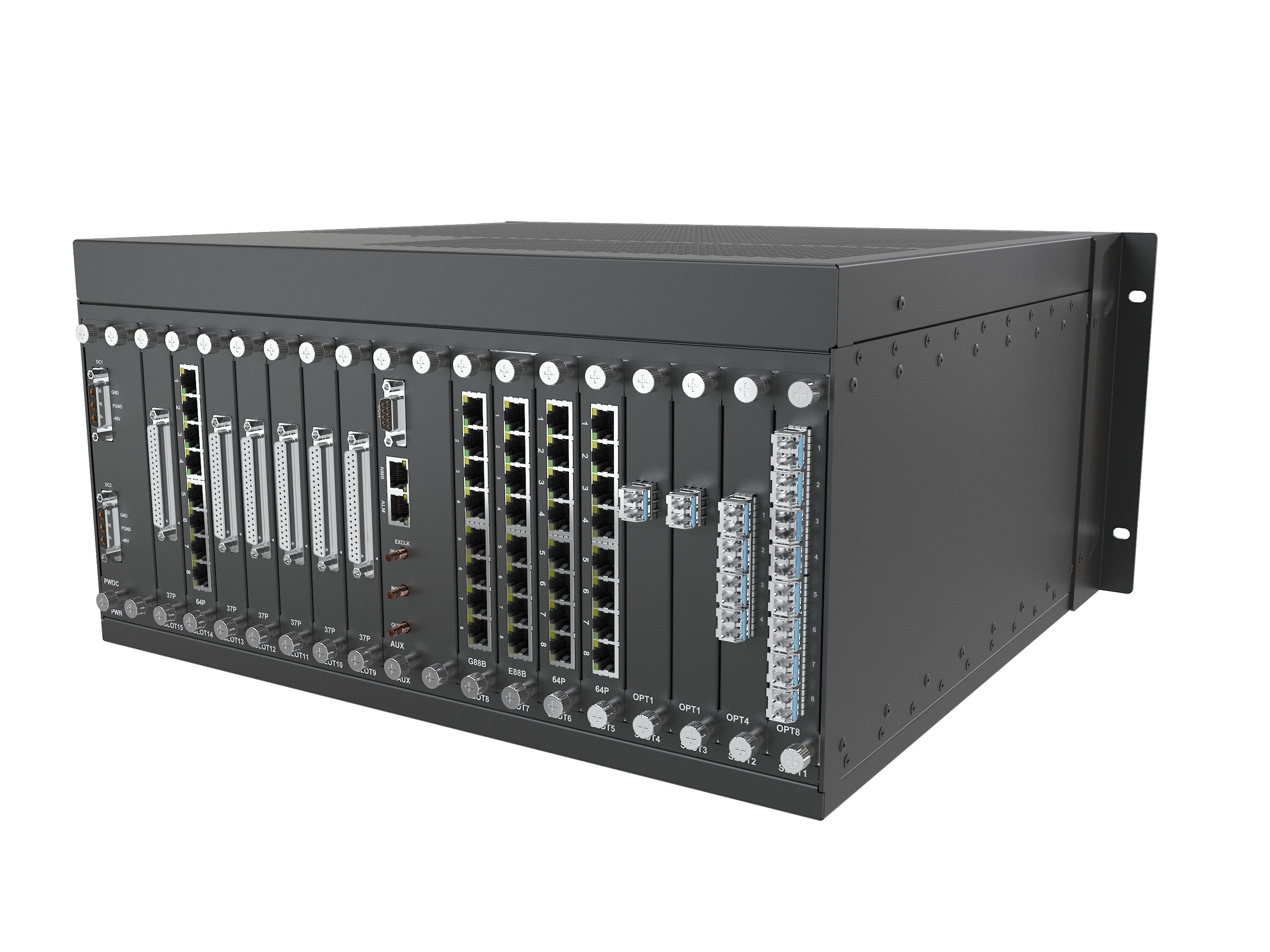

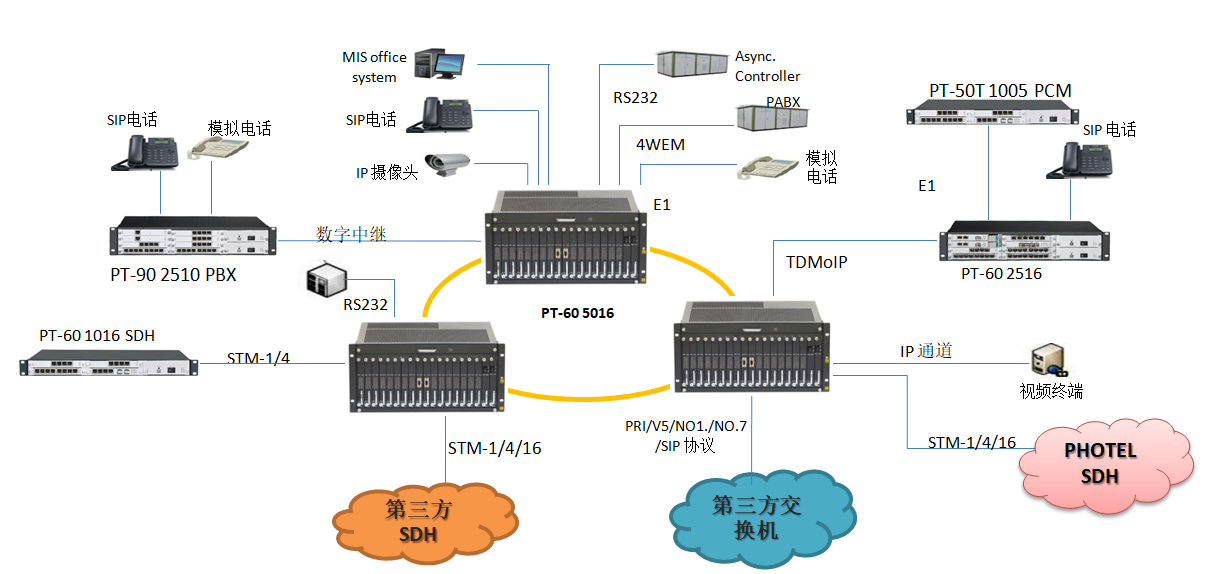

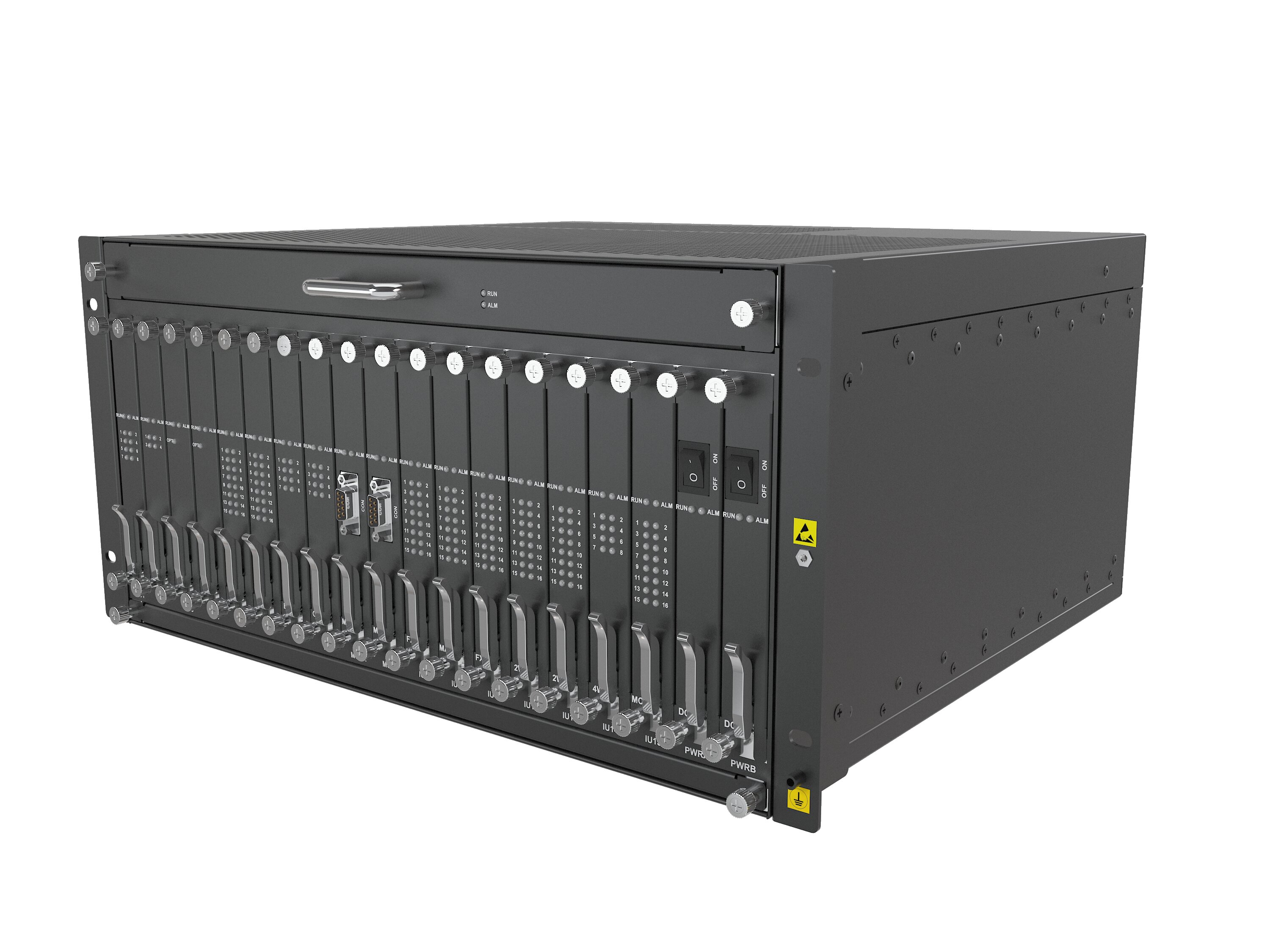

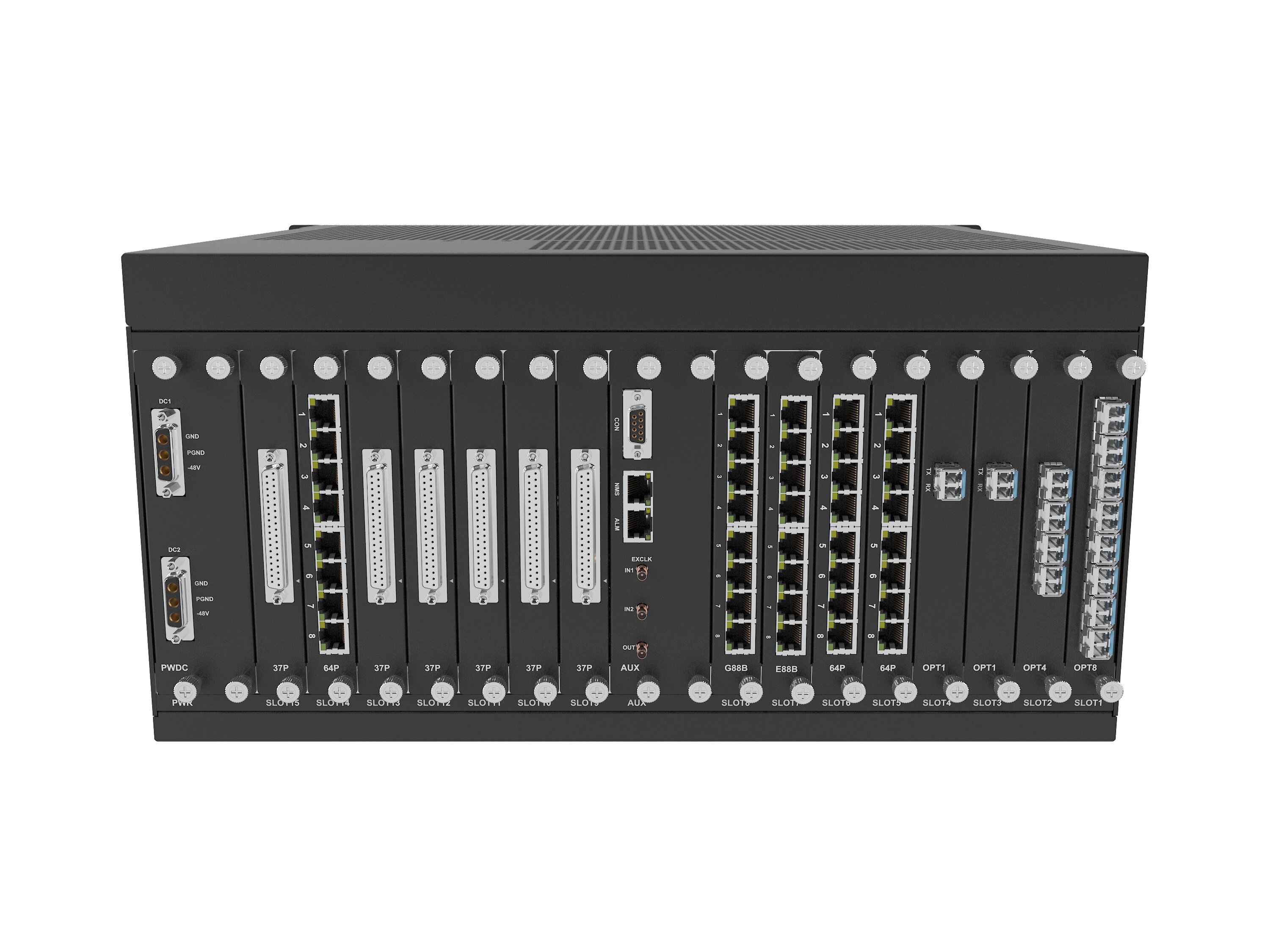

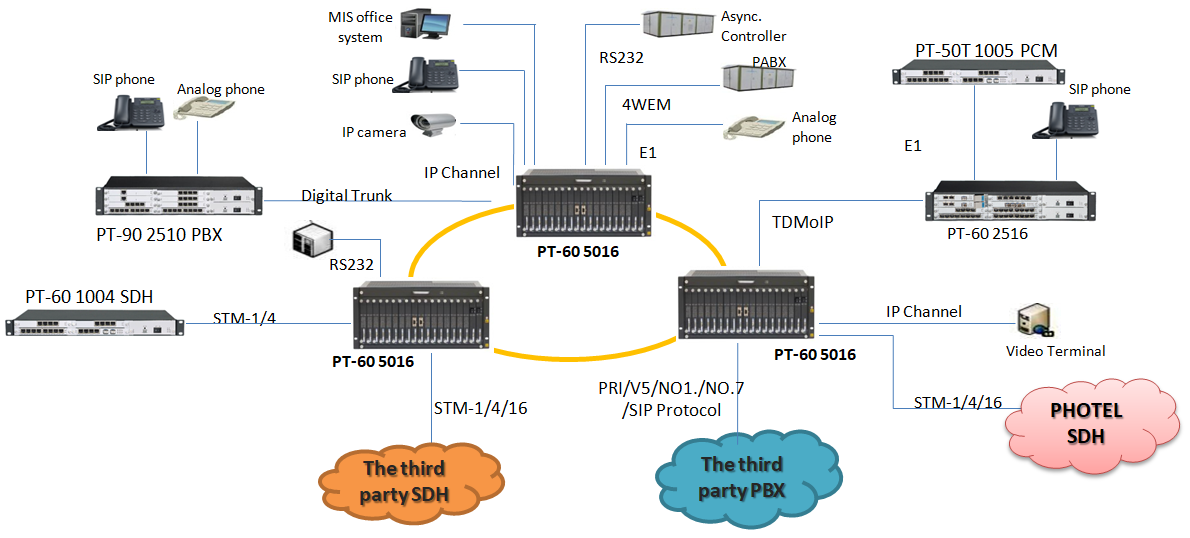

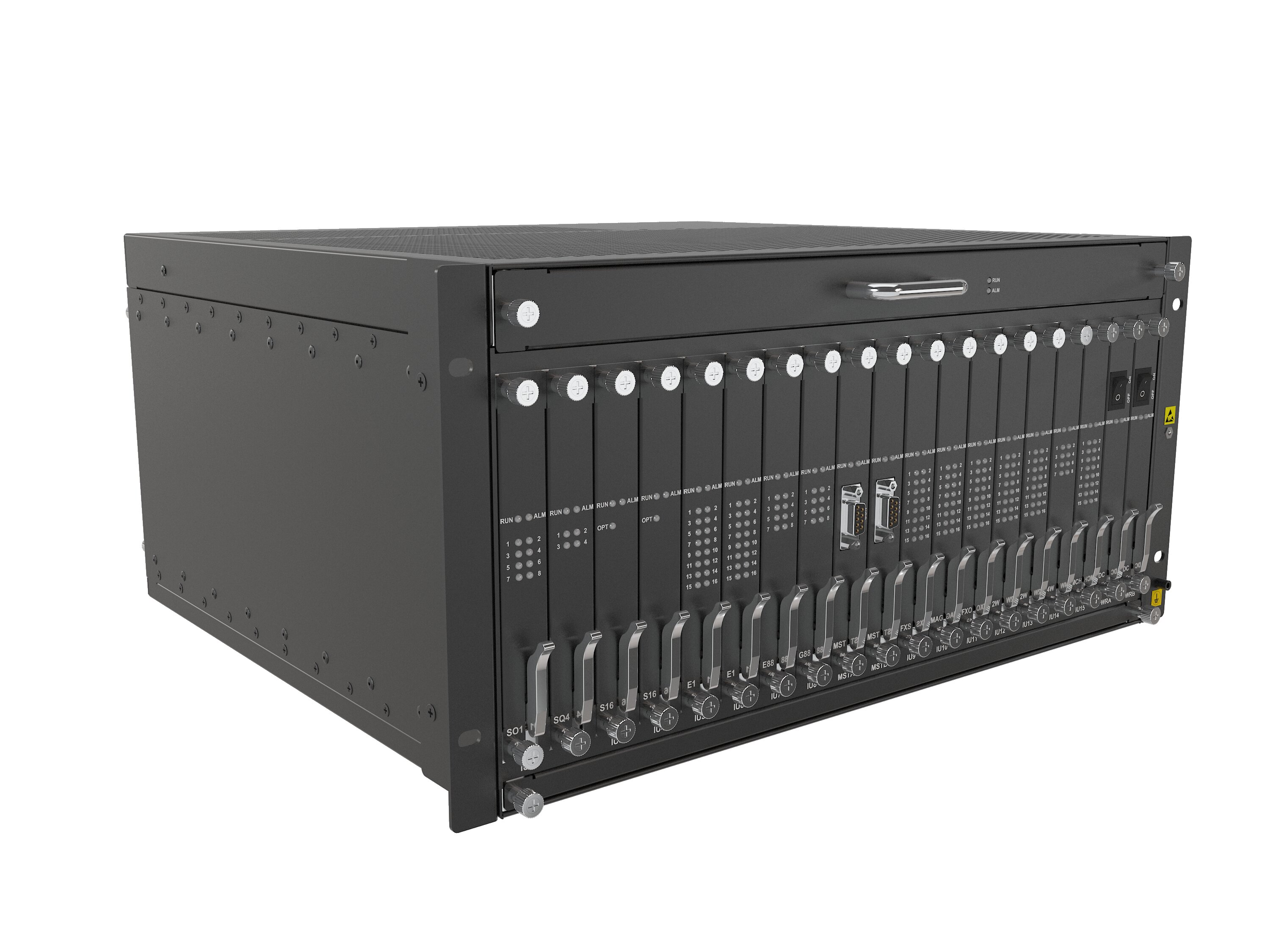

PT-60 5016 adopt 5U high and 19 inch rack. It integrated SDH, PCM (64K service), DXC, IPPBX in one shelf. it is deployed between the backbone network and access network, provides various service ports and high-capacity transmission capabilities.
PT-60 5016 can have the SDH ports as STM-64, STM-16,STM-4 and STM-1. For SDH application, it will have EOS and E1 cards. For PCM application, It will have the ports as FXS, FXO, 4WE&M, Hotline, RS232, FV35, ISDN, G.703. For PBX and IPPBX application, it will have IPS card. The IPS card can supports SS7, PRI, R2, V5.2 and SIP protocols.
The most high compact MSTP equipment with just 5U height shelf

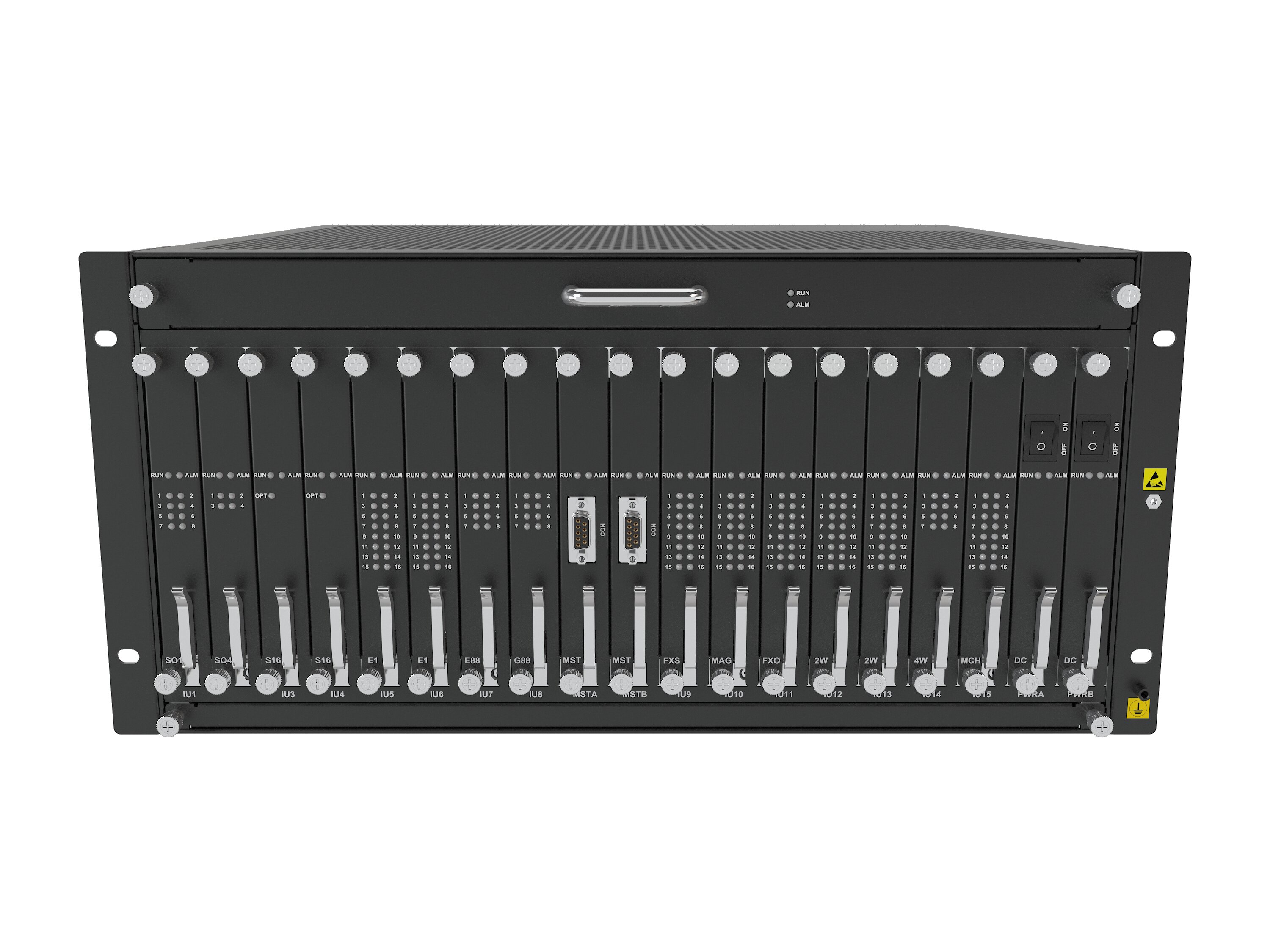

Standard 19” rack mounting front access chassis with fan unit on the back
Hot swappable for controller and all types of trunk cards and user cards
High flexibility with modular design, common slot for trunk and user cards
Extra large scale switching capacity with 4032 x 4032 VC12 non-blocking switching
Reliable structure with 1+1 controller, 1+1 power supply and 15 common slots for trunk and user cards
Sophisticate configurable system protection with 1+1 MSP, SNCP network protection and 1+1 interface protection
Versatile configurable function as SDH switch, DXC, TDMoIP switch, IPPBX or signaling gateway
System supports 8 x STM-16, or 32 x STM-4, or 64 x STM-1 optical ports
Ethernet supports 64 x GE, or 64 x FE electrical ports
Total 7200 timeslots cross connection for TDM over IP Ethernet
Data interface provides V35, FV35, RS232 for selection
Analogue interface supports FXS, FXO, 4 wires E&M, MAG and HOT line
| Equipment protection |
Cross-connection matrix and clock unit 1+1 protection Uplink and downlink interface card 1+1 protection Power 1+1 protection |
| Network protection |
1+1 MSP, SNCP |
| Clock port |
1 channel external input clock, 1 channel output. (2Mbit/s or 2MHz is optional. 120Ω interface |
| Clock working mode |
Lock mode, holdover mode or Free-run mode |
| System cross connection capacity |
192×192 VC4 high order cross-connection; 4032×4032 VC12 lower order cross-connection; |
| System Maximum Access Capacity |
8×2.5Gbit/s SDH Optical Port(I-16、S-16.1、L-16.1、L-16.2) 32×622Mbit/s SDH Optical Port(I-4、S-4.1、L-4.1、L-4.2) 64×155Mbit/s SDH Optical Port(I-1、S-1.1、L-1.1、L-1.2) 48×GE Electrical Port 120×FE Electrical Port 240×E1 Port 240×FXO Port(PBX Side) 240×FXS Port(Subscriber Side) 240×RS232 Port 120×4WE&M Port 120×V35 Port 4 Digital Trunk 200 SIP Trunk 200 SIP user |
| Ethernet Service Processing Capacity |
Ethernet service will be encapsulated into N*VC12/VC3/VC4 transparent transmission Support flow control Support aggregation |
